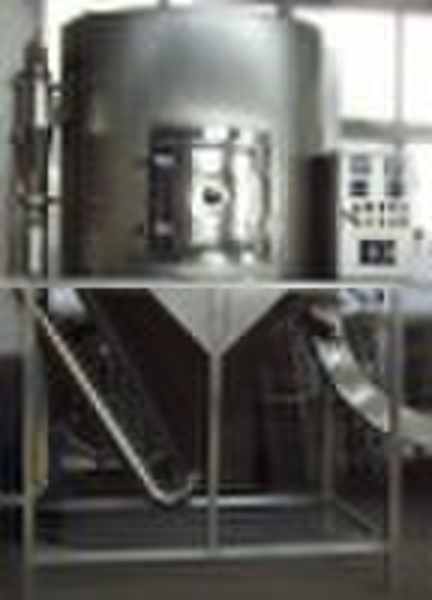

ZLPG series highspeed centrifuge spray dryer

Product: ZLPG series highspeed centrifuge spray dryer Application : This equipment is designed for drying the raw material in emulsion, solution, paste, (30 90% of water contains)and commonly used in chemical/food/pharmaceutical/ceramics/bio-chemical industrials. Feature: 1. High drying efficency: While the raw material converted into atomized, the suface of material will be enlarged in number of times, >95% of waters will be evaporated rapidly. 2. High quality and purity, and good uniformity on finished goods. 3. Stable and reliable process flow and easy to use. 4. Highly custimized capability depends on customer's requirement Technical parameters: modelsZLPG-5ZLPG-25ZLPG-50ZLPG-100ZLPG-150ZLPG-200-6000Inlet temp °c 140 350(self control)140 350(self control)140 350(self control)140 350(self control)140 350(self control)140 350(self control)outlet temp°c 80-90 80-90 80-90 80-90 80-90 80-90Max Evaporation qty (Kg/h) 5 25 50 100 150 200-6000Transmission type of centrifuge spray head compressed airmachinarymachinarymachinarymachinarymachinaryrotation speed (r.p.m)25000 18000 18000 18000 150008000-15000Diameter of spray disc (mm)50 120 120 120 150 180-340heat sourceelectricityelectricityelectricity + vapor/fuel/gas electricity+vaporelectricity +vapor/fuel/gas depends on customerheating power (KW) 8 31.5 60 81 99phyical dimension (M)1.8x0.93x2.23x2.7x4.263.7x3.2x5.14.6x4.2x75.5x4.5x7 depends on requirementpowder recycle rate (%) >=95>=95 >=95 >=95>=95>=95
